1S91 SURN vehicle included two radar station – a target acquisition and distribution radar 1S11 and a continuous wave illuminator 1S31, in addition to an IFF interrogator and an optical channel. _x000D_
_x000D_
While 1S31 antenna was installed on the upper section of the superstructure and the 1S11 on the lower, they could turn around independently. To make the height of the vehicle lower the central cylinder was able to hide inside the prime mover. _x000D_
_x000D_
The acquisition range of the radar was reported as 50 km for the Phantom II type target. _x000D_
_x000D_
Total weight of the 1S91 vehicle with a crew of 4 was 20.3 tonnes and 2P25 vehicle with 3 missiles and a crew of 3 was 19.5 t. _x000D_
_x000D_
Item No 09571 _x000D_
Item Name Russian 1S91 SURN KUB Radar _x000D_
Bar Code 9580208095714 _x000D_
Scale 1:35 _x000D_
Item Type Plastic Model Armor Kit _x000D_
Model Brief Length: 201.5mm Width: 104.3mm _x000D_
Total Parts 530+ _x000D_
Metal Parts n/a _x000D_
Photo Etched Parts 1 piece _x000D_
Film Parts n/a _x000D_
Resin Parts n/a _x000D_

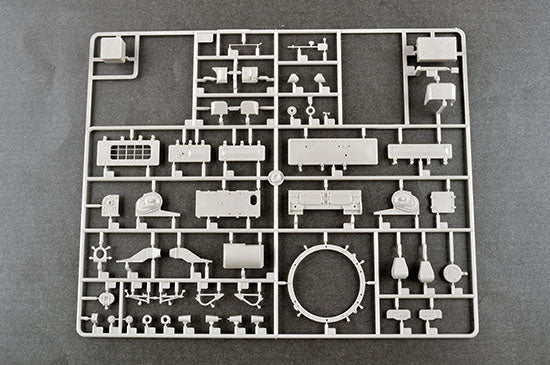

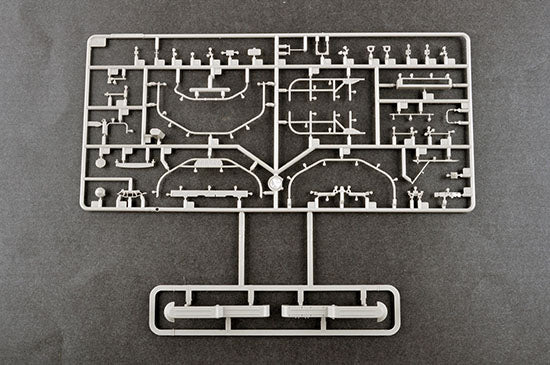

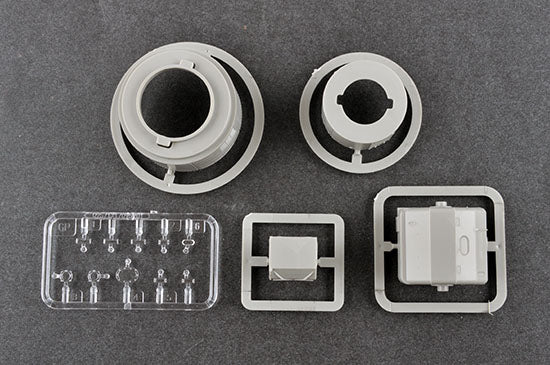

Total Sprues 13 sprues , lower hull and upper hull _x000D_
Released Date 2019-10 _x000D_
More Features The kit consists of over 530 parts _x000D_
>the kit w/refined detail _x000D_

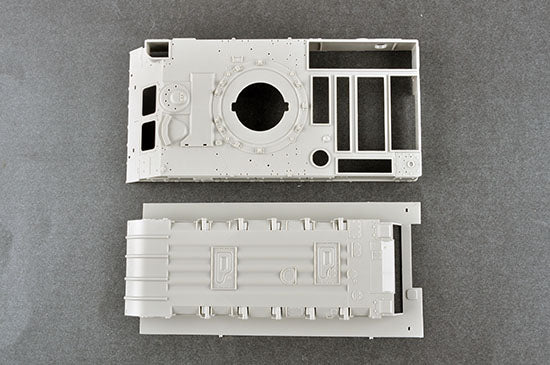

>multi-slide moulded upper hull and lower hull _x000D_
>Etched Photo parts included
