The LAV-M is an all-terrain, all-weather vehicle with night capabilities. It provides indirect fire support to light infantry and reconnaissance forces; providing high explosive area fire, covering smoke and illumination for first line-units. It is air transportable via C-130, C-141, C-5 and CH-53 E. When combat loaded there are 5 ready and 94 stowed 81mm bombs as well as 200 ready rounds and 800 stowed rounds of 7.62mm ammunition. There are 8 ready rounds and 8 stowed rounds of smoke grenades. The base plate and bipod for ground mounted mortar is stowed on the vehicle. The vehicle can be made fully amphibious within 3 minutes. Length： 6.4m. Width： 2.5m. Height： 2.14m. Curb weight： 10668kg. Gross weight (max.)： 12120 kg.
Item No 00391

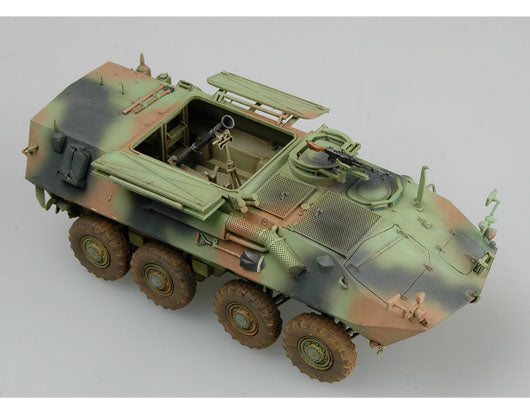

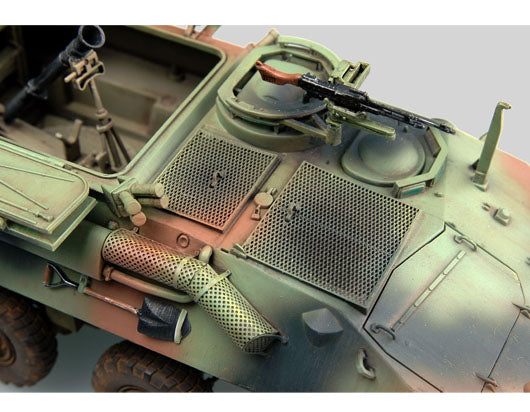

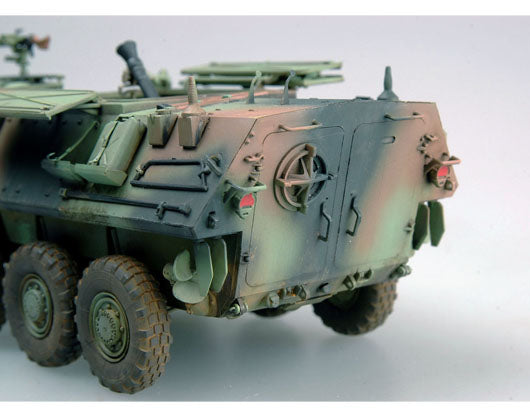

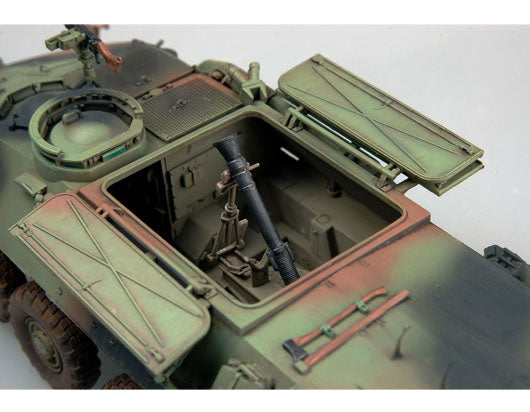

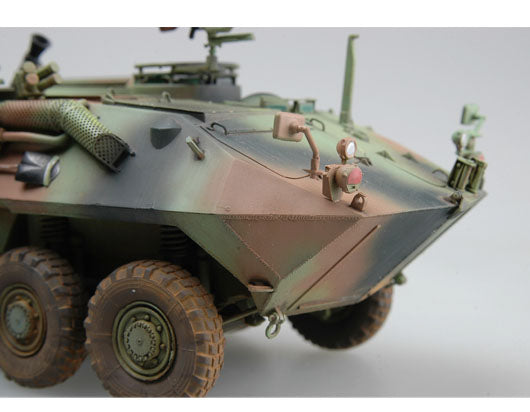

Item Name LAV-M (Mortar Carrier Vehicle)
Bar Code 9580208003917
Scale 1:35
Item Type Static Armor
Model Brief Length: 184.6mm Width: 81.8mm Height: 77.7mm
Total Parts 237pcs
Metal Parts n/a
Photo Etched Parts 2 frets
Film Parts n/a
Resin Parts n/a
Total Sprues 6 sprues plus lower hull, upper hull, 8 tires
Paint Schemes United State Marine Corps
Released Date 2009-05
More Features " Chassis
-Converted one-piece slide-moulded lower hull w/ authentic details
-All the underside contours for the suspension and drive train which is
